Gaming on PlayStation 4

Your XIM MATRIX supports PlayStation 4 consoles.

Authentication Controller

To use, you'll need to connect a genuine DualSense 4 controller to USB Port 3 of your XIM MATRIX. This is your authentication controller required to run on your console.

Note

You will need to supply the USB cable that matches your controller. This cable is not included.

Input Devices

Connect your wired supported input devices to USB Port 1 and Port 2.

If you have a supported wireless device, you can pair it after your XIM MATRIX is connected to your PlayStation 4.

Warning

If you are gaming with a wireless mouse, you may need additional setup to ensure performance of both your mouse and XIM MATRIX.

Configure your PlayStation 4

If you are using a DualShock 4 Gen 2 authentication controller, then you will need to first configure your PlayStation 4 to communicate with it over USB.

Navigate to Settings / Devices / Controllers / Communication Method and select Use USB Cable.

Connect To PlayStation 4

Make sure your PlayStation 4 is powered on and then using the included USB A to C cable (or one you supplied yourself), connect your XIM MATRIX to your PlayStation 4.

Your XIM MATRIX will turn on and display its startup rainbow sequence.

If you don't yet have a PlayStation 4 Config on your XIM MATRIX, you'll need to create one now.

Creating a PlayStation 4 Config

To connect to your PlayStation 4, you must have a Config that has your XIM MATRIX output as a PlayStation 4 controller.

Load XIM MATRIX Manager and create a new Config by pressing the vertical "..." on the top right and selecting New Config:

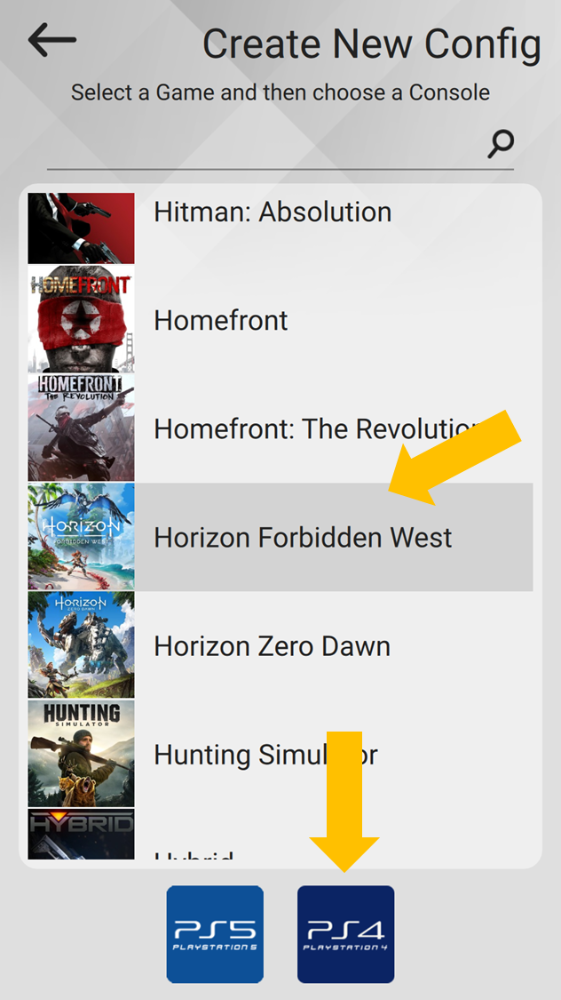

Select the game you are playing and the platform:

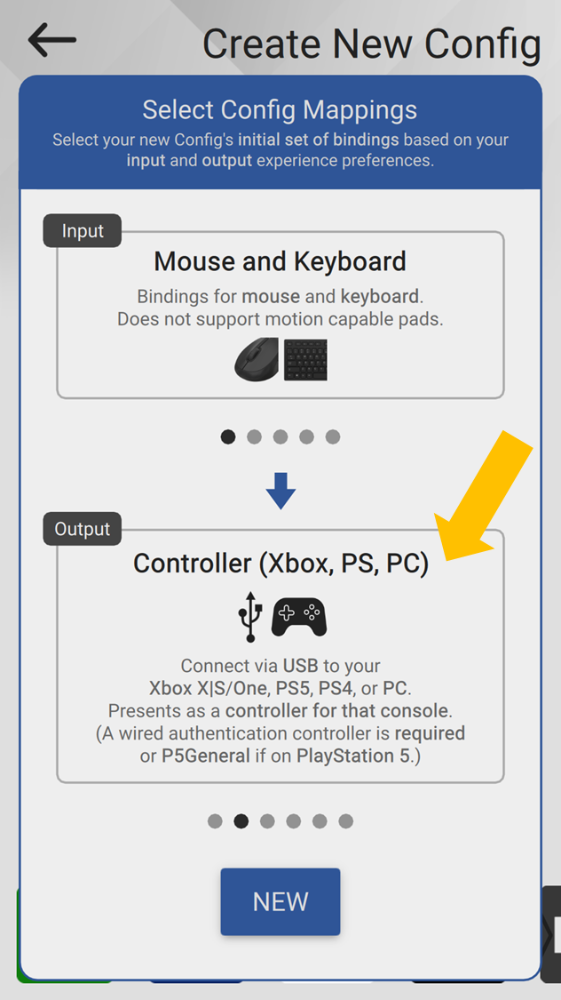

Next, choose your inputs and outputs. For a PlayStation 4 Config, the output must be Controller (Xbox, PS4).

Press "New" to create your Config. It may take up to 30 seconds for your Config to be created.

Required Game Settings

When a new PlayStation 4 Config is added to your XIM MATRIX, you are reminded that you must set your game's in-game sensitivity to maximum and also any additional game-specific setting requirements. The rest of the settings should be remain at default.

Warning

Failure to configure your game's required settings correctly will result in negative aiming performance and the inability to effectively share and use Configs from others.

If you need to check required in-game settings at a later time, press the gear icon on Manager's main screen.

Completed Connection

As your XIM MATRIX works to connect to your PlayStation 4, it will quickly blink white twice repeatably.

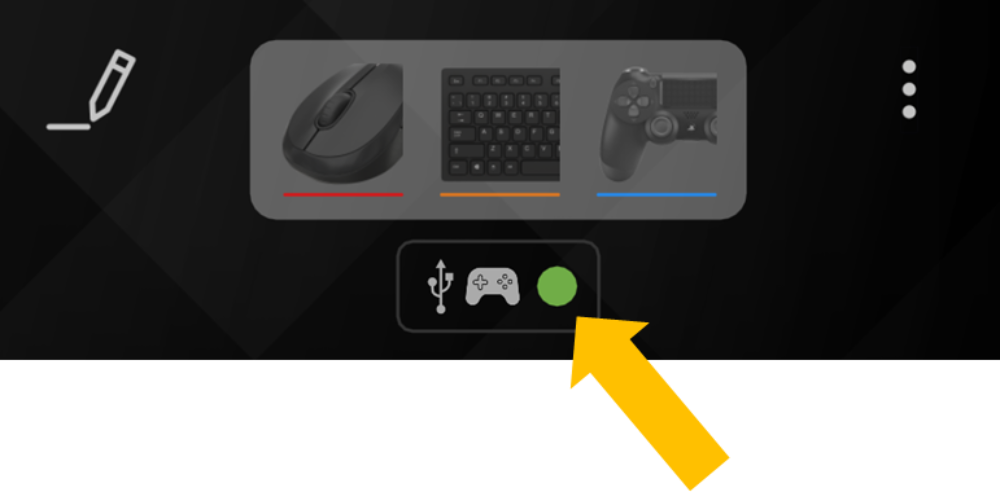

When your XIM MATRIX successfully connects to your PlayStation 4, you will see a green connection dot in Manager.

And, your XIM MATRIX will quickly flash green upon successful connection as well.

Troubleshooting

If your XIM MATRIX isn't connecting to your PlayStation 4, please follow our PlayStation 4 Troubleshooting steps.
